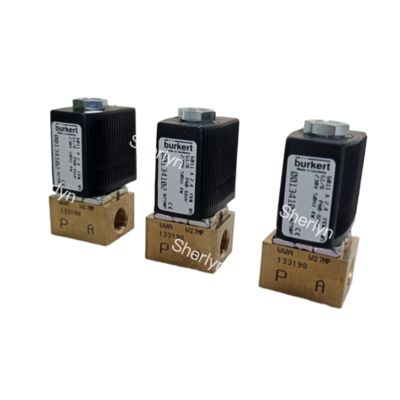

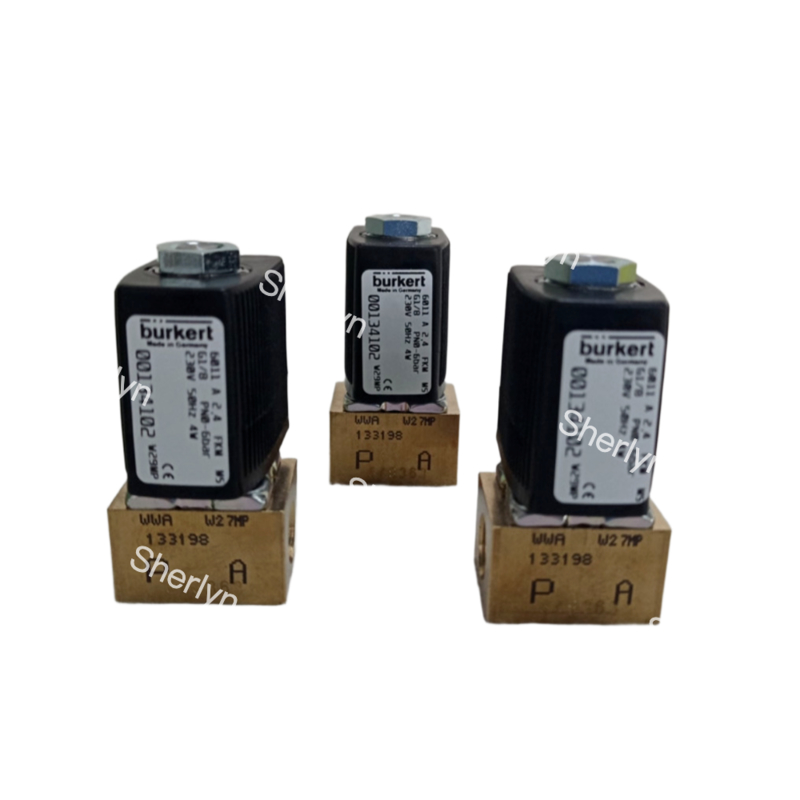

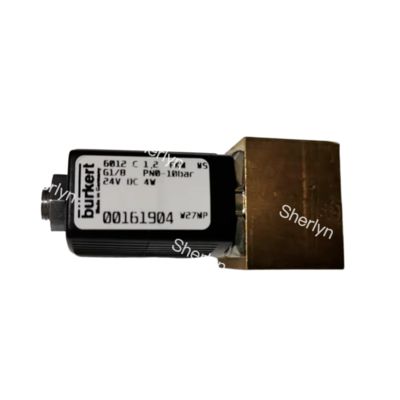

00221662 Burkert Solenoid Valve 6213 Type G3/4 2/2 Normally Closed DC24V

Product Description:

The core advantages of BURKERT 6213 solenoid valve are mainly reflected in its unique working principle and meticulous design:

Servo assisted and zero pressure differential start: This valve adopts pilot operated operation and is equipped with a unique spring coupled diaphragm system. This system can assist in opening the main diaphragm, allowing the valve to start smoothly even under zero system pressure conditions. For the special model HP00, the valve can be opened without pressure difference, suitable for gas and vacuum applications.

Robust design and low power consumption: Valve bodies are typically available in two material options, brass and stainless steel, to accommodate different corrosive requirements of media. The coil is encapsulated with epoxy resin, with a protection level of up to IP65, which can effectively prevent dust and water. Some models are also equipped with "Kick and Drop" electronic power reduction technology, which can maintain operation at lower power after startup, thereby achieving energy saving and extending coil life.

Quiet operation and flexible installation: The optimized design of the flow channel and diaphragm helps reduce operating noise and achieve silent shutdown. The valve supports installation at any angle, but the manufacturer recommends that the coil should be facing upwards for optimal performance and longest service life.

Applications:

BURKERT 6213 solenoid valve excels in several key areas:

• Water treatment and swimming pool systems: It is used for controlling waterway switches. The version with a brass valve body is compliant with drinking water standards.
• Food, beverage, and pharmaceutical industries: In these highly hygienic sectors, stainless steel valve body models are suitable for controlling neutral liquids, such as water and CIP (in-situ cleaning) fluids.
• General industrial automation: It serves as a dependable switching element in compressed air systems, vacuum systems, and heating and cooling circuits.
• Chemical and process industries: By opting for appropriate valve body materials (like stainless steel) and sealing materials (such as FKM), various chemical media, including hot oil with additives, can be effectively processed.

Support and Services:

Burkert Solenoid Valve product Technical Support and Services:

- Comprehensive technical support to assist with installation and troubleshooting.

- Product documentation and manuals available for download.

- Field service technicians for on-site assistance if required.

- Training programs to educate users on proper use and maintenance of the solenoid valve.

Packing and Shipping:

Product Packaging:

The Burkert Solenoid Valve is carefully packaged in a sturdy cardboard box to ensure safe transportation. The valve is securely fitted in the box with protective packaging material to prevent any damage during shipping.

Shipping:

Orders for the Burkert Solenoid Valve are processed promptly upon receipt. The valve is shipped using a reliable courier service to ensure timely delivery. Customers will receive a tracking number to monitor the status of their shipment.
