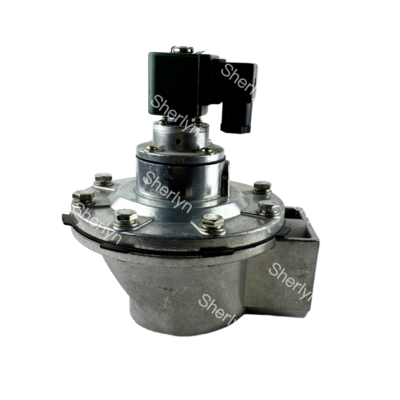

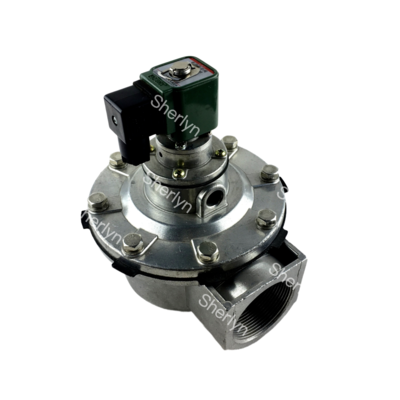

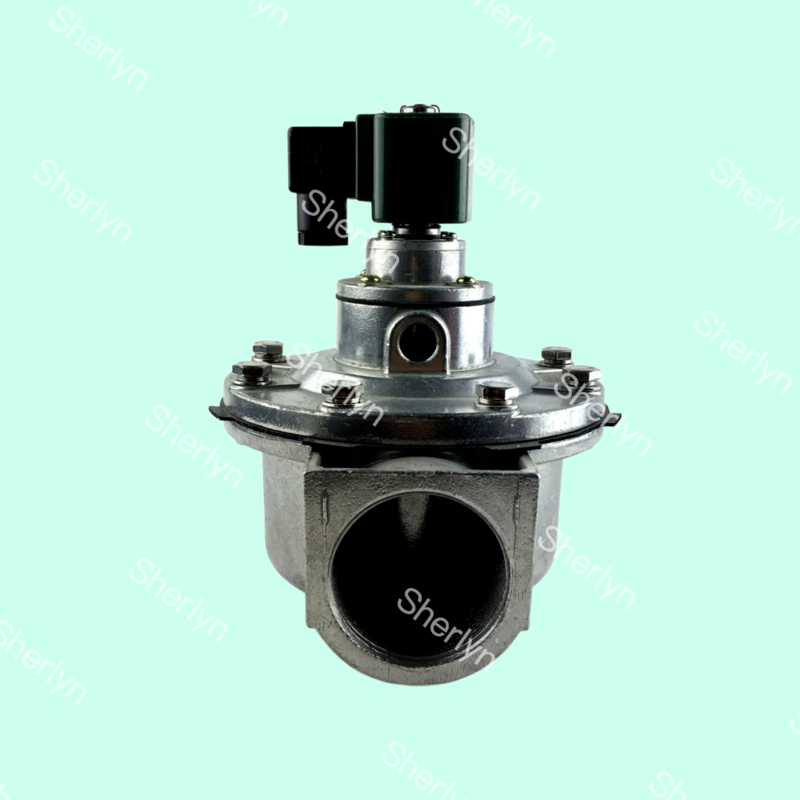

BFEC Right Angle 2-inch DMF-Z-50S Electromagnetic Pulse Valve 2''

Product Description:

The DMF series is categorized based on installation structure into three main types, each suited for specific working conditions:

Right angle (DMF-Z): The inlet and outlet angles are set at 90 degrees, offering a compact design that saves space efficiently. One of its typical models is the DMF-Z-25/40S, ideal for high-dust environments found in steel and cement plants. A key advantage is the easy installation due to the direct connection between the airbag and spray pipe.

Direct type (DMF-T): Featuring an inlet and outlet angle of 180 degrees, this type ensures low airflow resistance and is best suited for small and medium-sized dust removal setups. A common model is the DMF-T-20 (with a 20mm diameter), commonly used in the wood processing and food industries. Parameters include a working pressure range of 0.4 to 0.7MPa and a diaphragm life exceeding 1 million cycles.

Submerged (DMF-Y): A popular model, with the valve body embedded in the airbag installation, enhancing circulation efficiency and perfect for scenarios with low-pressure gas sources. Various typical models include:
- DMF-Y-80 (three and a half inches): Provides extensive spray coverage, enhancing dust removal efficiency significantly.
- DMF-Y-102SA: Features a 3-inch valve body achieving a 4-inch injection effect, resulting in a 45% boost in injection volume compared to traditional 3-inch valves.
- DMF-Y-76S/90S: Designed with a large diameter range of 76mm to 102mm, suitable for larger systems like cement kiln tails and waste incineration.

Applications:

Industrial Dust Removal System:
Iron and Steel Metallurgy: Used for high-temperature and high dust environments such as sintering heads and blast furnace gas purification, requiring the use of a cooler (temperature ≤ 60 ℃). It is recommended to use a DMF-Z right angle valve or submerged valve.
Cement manufacturing: kiln tail dust collector, raw material grinding dust removal, compatible with DMF-Y submerged valve (such as DMF-Y-80), resistant to ambient temperature dust (<80 ℃).
Garbage incineration: Fluorine rubber (FKM) membrane submerged valves (such as DMF-Y-62S) are required for acid flue gas treatment, which can increase corrosion resistance by 8 times.
Wood processing/food chemical industry: sawdust or powder pneumatic conveying scenarios, suitable for straight through valves (DMF-T series), requiring oil-free dry air (oil content<5ppm).

Auxiliary System:
Bunker arch breaking: The material bridge in the coal powder silo and grain silo is broken by pulse airflow, with a frequency of ≤ 30 times/minute.
Pneumatic conveying blockage removal: Install pulse valves at pipeline blockage points to instantly spray and clear powder materials (such as plastic particles and food grade calcium carbonate).

Support and Services:

Our Product Technical Support team for Pulse Jet Valves is dedicated to providing assistance with installation, troubleshooting, and maintenance of the product. Our experts are available to address any technical questions or concerns you may have.

In addition, we offer a range of services for Pulse Jet Valves, including on-site support, training programs, and maintenance contracts. Our goal is to ensure that your Pulse Jet Valves operate efficiently and effectively, maximizing their performance and lifespan.

Packing and Shipping:

Product Packaging and Shipping:

Our Pulse Jet Valves are carefully packaged to ensure safe delivery to our customers. Each valve is securely wrapped in protective materials to prevent any damage during transit.

Shipping:

We offer fast and reliable shipping options for our Pulse Jet Valves. Orders are processed promptly and shipped out within 1-2 business days. Customers can choose their preferred shipping method at checkout, including standard or expedited shipping.
