Detailed Product Description
| Name: |

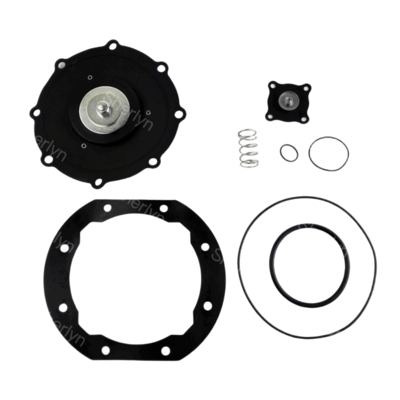

C113928 ASCO Type Pulse Valve Diaphragm Repair Kits |
Size: |
For 3''Pulse Valve |
| Material: |
NBR Nitrile |
Suitable Valve Number: |
SCEX353.060 |
| Mounting Hole Size: |
11mm |

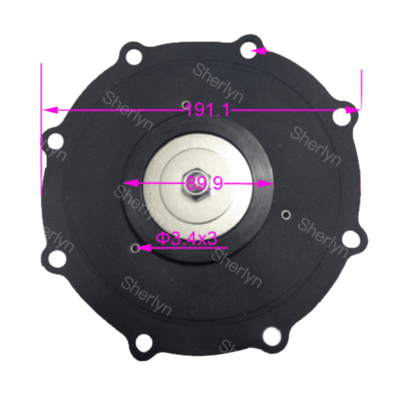

Diaphragm Outer Distance: |
190mm |
| Center Distance: |
187mm |
Sealing Gasket: |
Without |
| Highlight: |
ASCO Diaphragm
,
ASCO Pulse Valve Diaphragm
,
ASCO Membrane
|
Product Description:

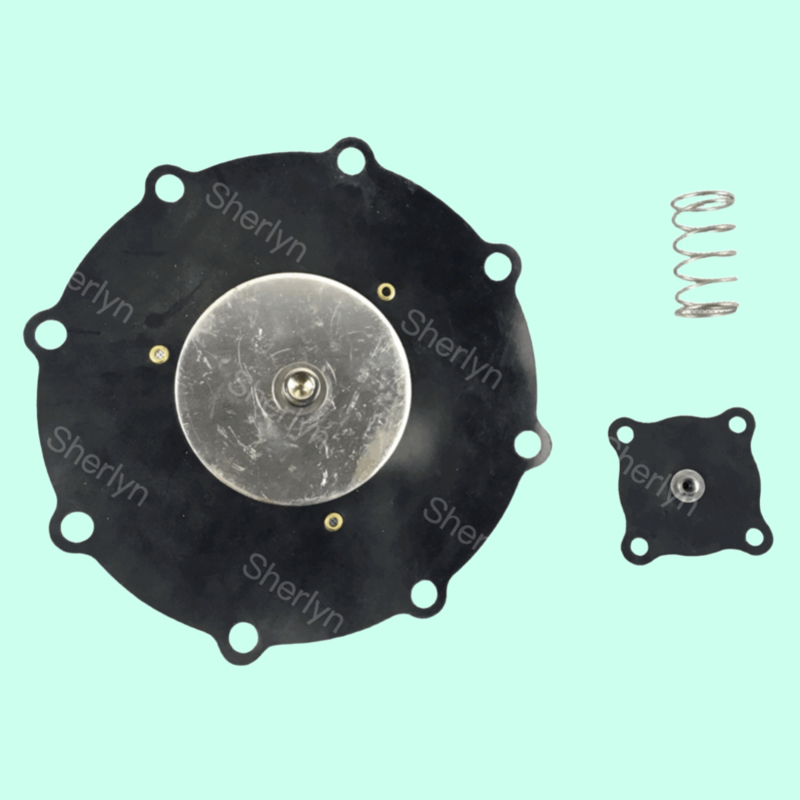

This is ASCO Type C113928 3'' solenoid valve diaphragm repair kits for SCEX353.060 electromagentic pulse jet valve.
Name: C113928 ASCO Type Pulse Valve Diaphragm Repair Kits
Size: For 3''Pulse Valve
Material: NBR Nitrile
Suitable Valve Number: SCEX353.060
Mounting Hole Size: 11mm
Diaphragm Outer Distance: 190mm
Center Distance: 187mm
Sealing Gasket: Without
Applications:
Industrial Bag Dust Removal System
Function: Control compressed air pulse jet to remove dust accumulated on filter bags
Industry Cases:
1. Cement Plant: Baghouse at kiln tail (gas temperature < 80℃)
2. Steel Plant: Dedusting at sintering machine head (requires pre-cooler)
3. Wood Processing: Sawdust collection system
Powder Pneumatic Conveying Anti-Blocking
Install pulse valves at pipeline blockages, triggering instant airflow impact with C113825 diaphragm (e.g., food-grade calcium carbonate, plastic granule conveying)
Material Silo Arch Breaking Device
Application: Break material arch in coal powder silos/grain silos (operating frequency: ≤30 times/minute)
| Ordering Code |
Fitted Valve Code |
Valve Port Size |
Material |
| C113443 |
G353A041, G353A042 |
3/4'', 1'' |
TPU/NBR |
| C113444 |
SCG353A043, SCG353A044, |
3/4'', 1'' |
| SCG353-052, SCG353-053 |
| C113825 |
G353A045 |
1-1/2'' |
NBR |
| C113826 |
G353A046 |
1-1/2'' |
| C113827 |
SCG353A047, SCG353A065 |
1-1/2'' |
| C113685 |
SCG353A050, SCG353A051 |
2'', 2-1/2'' |
| C113686 |
| C113928 |
SCEX353.060 |
3'' |
| C123432 |
SCG353D060, G353.060 |
| C123433 |
| K096875 (K238864) |
8353C033 |
3/4'' |
| K200262 (K238866) |
G353A041, G353A042, SCG353A043, |
|
| SCG353A044, SCG353-052, SCG353-053 |
1'' |
| K276886 (K238870) |
G353A045, G353A046, |
1-1/2'' |
| K276886B |
SCG353A047, SCG353A065 |
| K276887 |
|
Viton |
| Tips: EPDM, FKM All Available. |
Support and Services:
Our Product Technical Support and Services for the Pulse Valve Diaphragm include:
- Comprehensive troubleshooting guidance for any issues related to the product
- Installation assistance and best practices recommendations
- Regular maintenance tips to ensure optimal performance
- Product training and resources to help users maximize the functionality of the pulse valve diaphragm
- Warranty support and repair services for any manufacturing defects or malfunctions
Packing and Shipping:
Product: Pulse Valve Diaphragm
Description: High-quality replacement diaphragm for pulse valves, made from durable and flexible materials.
Packaging: The pulse valve diaphragm is carefully packed in a sturdy cardboard box to ensure safe delivery.
Shipping: We offer worldwide shipping with fast and reliable delivery options. Your order will be shipped within 1-2 business days.
