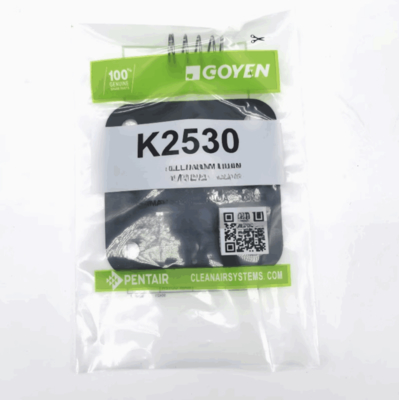

GOYEN K2529/2530 1-inch Diaphragm Repair Kit RCAC25T3/DD3/FS3 1 "Fluororubber/Nitrile Rubber

Product Description:

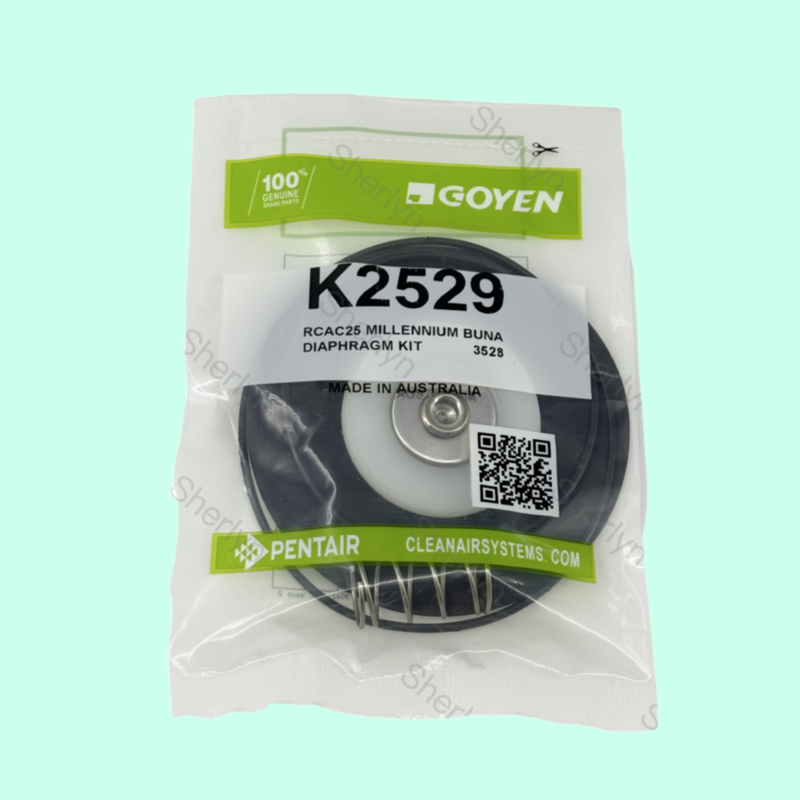

K2529 25 Millennium Buna Diaphragm Kit for Goyen pulse valve RCAC25T3, RCAC25DD3, RCA25FS3, RCAC25FH3; The diaphragm has strong oil resistance, acid resistance, high temperature resistance, alkali resistance and other characteristics, which can easily ensure the complete synchronous operation with other control components and control the injection of pulse compressed air. Even in extremely harsh working environment, it can ensure its normal operation and long service life.

Applications:

The industrial dust removal system features a bag/filter cartridge dust collector with pulse cleaning mechanisms. It is commonly utilized in various industries including cement plants for kiln tail dust removal and steel plants for blast furnace dust removal.

Within the system, each valve is responsible for controlling 20 to 50 filter bags, while the membrane functions at a high frequency, performing at least once per minute.

It is capable of managing high temperature and corrosive gases effectively.

• Waste incineration flue gas is handled using an FKM film resistant to temperatures of up to 200°C.
• For acidic and alkaline waste gases from chemical plants, an EPDM membrane resistant to pH values ranging from 3 to 11 is employed.

When operating in special medium environments:

• In the food and pharmaceutical industry, an EPDM food grade film provides anti-pollution capabilities.
• For systems containing oil-infused compressed air, an NBR diaphragm ensures oil resistance and guarantees a proper seal.

When facing stringent physical conditions:

• For high-pressure impact scenarios, the system is equipped with a CA62T/CA76T double diaphragm structure capable of withstanding pressures of up to 0.85MPa.
• In high humidity environments like cement raw material grinding operations, the system provides dust removal and anti-condensation measures.

Main Dimension

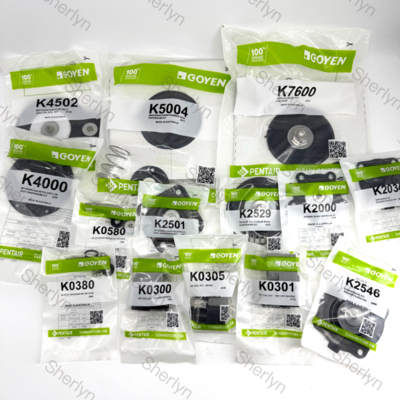

Ordering Number of Diaphragm For Goyen Dust Collector Pulse Valve:

Pulse Valve Model		NBR Diaphragm Model	FKM Diaphragm Model	Low Temprature Diaphragm Model
RCA10-6T		K1001	K1002	/
CA20T	RCA20T	K2000 (M1204B)	K2007	/
CA20DD	RCA20DD	K2002 (M764)
CA25T	RCA25T	K2501 (M1183B)	K2503 (M1887)	K2504
CA25DD	RCA25DD	K2502 (M736)
CAC25FS	RCA25FS
CA25MM	RCA25MM
CA32T	RCA32T	K2500 (M1183)	K2503 (M1887)	/
		K2522 (M736)
CA35T	RCA35T	K3500 (M1581)	K3501	K3502 (M1591)
CA40T	RCA40T	K4000 (M1182)	K4007	/
CA40MM	RCA40MM
CA45T	RCA45T	K4502 (M2162)	K4503	K4522
CA45DD	RCA45DD	K4504 (M2187)
CA45FS	RCA45FS
CA40MR	RCA40MR
CA50T	RCA50T	K5004 (M1638A)	K5000	/
CA62T	RCA62T	K5005 (M1639A)
CA76T	RCA76T	K7600	K7601	/
CA76MM	RCA76MM
CA76MR	RCA76MR
CA102MM	RCA102MM	K10200	K10201	/
CA62MR	RCA62MR	K7604	K7602	/
RCA20M		K2003 (M1174B)	/	/
RCAC20T3, ST3, DD3, FS3		K2016	K2017	/
RCAC25T3, DD3, FS3		K2529	K2530
RCAC25FH3		K2531	/	/
Pulse Valve Model		Shockwave Diaphragm Model	FKM Diaphragm Model	/
RCAC20T4, ST4, DD4, FS4		K2034	K2033	/
RCAC25T4, ST4, DD4, FS4		K2546	K2551	/
RCAC25FH3		K2545	/	/
RCAC25T3, DD3, FS3		K2549	/	/

Support and Services:

Our Product Technical Support and Services team for the Pulse Valve Diaphragm product is dedicated to providing assistance with installation, troubleshooting, and maintenance of the product. Whether you have questions about product specifications, operation, or performance, our team is here to help.

Packing and Shipping:

Product Name: Pulse Valve Diaphragm

Description: High-quality replacement diaphragm for pulse valves.

Package Includes: 1 Pulse Valve Diaphragm

Shipping Details: - Ships within 1-2 business days. - Standard shipping rates apply. - Tracking information will be provided once the order is shipped.
