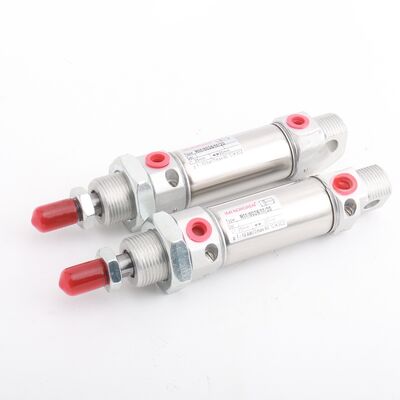

NORGREN RM/28010/40 Single Acting Cylindrical Cylinder According To ISO 6432 Standard

Product Description:

The Piston Pneumatic Cylinder is a highly efficient and reliable mini cylinder designed to meet a wide range of industrial automation needs. This single-acting, spring return cylinder is engineered with a magnetic piston, ensuring precise and responsive operation. It is an ideal choice for applications that require compact size without compromising performance, making it a preferred option among mini cylinders in the market.

One of the standout features of this piston pneumatic cylinder is its versatility in operating conditions. It functions effectively within an operating pressure range of 2 to 10 bar (29 to 145 psi), providing sufficient force for various mechanical tasks while maintaining energy efficiency. The cylinder is also capable of operating within a temperature range of -10°C to +80°C (14°F to 176°F), allowing it to perform reliably in diverse environments, from cold storage facilities to warm manufacturing plants.

The design incorporates buffer cushioning, which plays a crucial role in reducing impact forces at the end of the piston stroke. This cushioning not only minimizes wear and tear on the cylinder components but also ensures smooth and quiet operation, enhancing the overall lifespan and reliability of the equipment. The buffer cushioning feature is particularly beneficial in applications where precision and durability are paramount.

Available in multiple bore sizes, this ISO 6432 cylinder comes in diameters of 10 mm, 12 mm, 16 mm, 20 mm, and 25 mm. These options provide flexibility for users to select the appropriate size based on the force and space requirements of their specific application. The adherence to the ISO 6432 standard guarantees compatibility and interchangeability with other pneumatic components, facilitating easier integration into existing systems.

The magnetic piston within the cylinder allows for seamless integration with magnetic sensors, enabling precise position detection and control. This feature is crucial for automation processes where accurate feedback is necessary for monitoring and adjusting the cylinder’s movement. The magnetic piston enhances the cylinder’s functionality, making it suitable for advanced pneumatic systems that demand high precision and reliability.

This mini cylinder is constructed with durable materials that withstand the rigors of industrial use. The robust build ensures resistance to corrosion, mechanical stress, and environmental factors, making it a dependable component in various sectors such as manufacturing, packaging, automotive, and robotics. The compact size of the mini cylinder also allows for installation in tight spaces, expanding its applicability across different machinery and equipment setups.

In summary, the Piston Pneumatic Cylinder offers a compact, efficient, and versatile solution for pneumatic actuation needs. Its single-acting, spring return operation combined with a magnetic piston provides reliable performance and precise control. With an operating pressure range of 2 to 10 bar and a temperature tolerance from -10°C to +80°C, along with buffer cushioning for smooth operation and bore sizes adhering to ISO 6432 standards, this mini cylinder stands out as a top choice for industries seeking quality and efficiency in their pneumatic systems.



Technical Parameters:

Cushioning	Buffer Cushioning
Operating Pressure	2 To 10 Bar (29 To 145 Psi)
Operation	Single-acting, Spring Return, Magnetic Piston
Operating Temperature	-10°C To +80°C (14°F To 176°F)
Barrel Material	Stainless Steel
Bore (mm)	10 / 12 / 16 / 20 / 25

ComponentMaterialCylinder BarrelAustenitic stainless steelEnd CapsBright anodised aluminium alloyPiston RodAustenitic stainless steelBuffersPolyurethane (PUR)SealsNitrile rubber (NBR)

Applications:

The NORGREN RM/28012/20 Piston Pneumatic Cylinder is a high-quality ISO 6432 cylinder designed to meet the diverse demands of modern industrial applications. With its robust stainless steel barrel material and reliable buffer cushioning, this pneumatic cylinder ensures smooth and efficient operation even under challenging conditions. Certified with CE, the product guarantees safety and compliance with international standards, making it an ideal choice for industries requiring precision and durability.

This ISO 6432 cylinder operates efficiently within a temperature range of -10°C to +80°C (14°F to 176°F), making it suitable for various environmental conditions. Its operating pressure ranges from 2 to 10 Bar (29 to 145 Psi), allowing it to perform optimally in applications requiring moderate to high force. Available in bore sizes of 10, 12, 16, 20, and 25 mm, the NORGREN RM/28012/20 pneumatic cylinder offers versatility for different mechanical setups and force requirements.

In manufacturing and automation industries, this piston pneumatic cylinder is widely used for tasks such as clamping, positioning, and lifting. Its compact ISO 6432 design enables easy integration into automated machinery, conveyor systems, and assembly lines. The buffer cushioning feature helps reduce noise and wear, prolonging the cylinder’s service life and enhancing overall system reliability.

The NORGREN RM/28012/20 is also well-suited for packaging machinery, where precise and repeatable movements are critical. Its stainless steel barrel ensures resistance to corrosion and wear, making it ideal for food processing and pharmaceutical industries where hygiene and durability are paramount. The cylinder's quick delivery time of 1-7 workdays after payment and flexible packaging options, including cartons as per client requirements, make it convenient for urgent and customized orders.

With a minimum order quantity of just one piece and a competitive price available through negotiation, this pneumatic cylinder is accessible to both small-scale operations and large manufacturing facilities. Payment options such as T/T, Western Union, and PayPal provide flexibility for international buyers. Additionally, the supply ability of 5000 pieces per month ensures consistent availability to meet high-volume demands.

Overall, the NORGREN RM/28012/20 ISO 6432 cylinder represents a reliable, efficient, and adaptable solution for various industrial pneumatic applications. Its combination of sturdy materials, precise engineering, and excellent certification make it an indispensable component in automation, manufacturing, packaging, and many other sectors.
